FITTINGS HDPE

EQUAL SOCKET

Read More

REDUCING SOCKET

Read More

FEMALE THREADED ADAPTOR

Read More

MALE THREADED ADAPTOR

Read More

END CAP

Read More

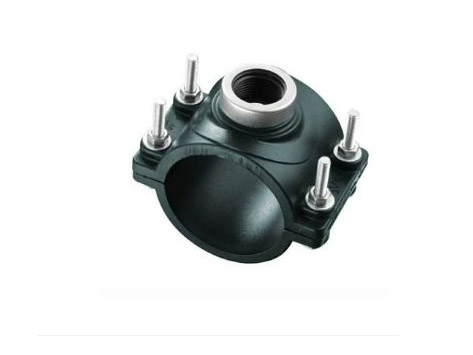

CLAMP SADDLE

Read More

EQUAL ELBOW

Read More

REDUCING ELBOW

Read More

FEMALE ELBOW

Read More

MALE ELBOW

Read More

POLY NIPPLE

Read More

O'RING

Read More

EQUAL TEE

Read More

REDUCING TEE

Read More

FEMALE TEE

Read More

MALE TEE

Read More

POLY REDUCING BUSH

Read More

  • Instagram
© HECCA DYAKSA BAJATAMA 2023
Scan the code

HDPE PIPE

SPECIFICATION

SIZE:

PIPE SIZE
(MM)		OUTSIDE DIMENSION (OD)
(MM)
2020,0 20,3
2525,025,3
3232,032,3
4040,040,4
5050,050,4
6363,063,4
7575,075,5
9090,090,6
110110,0110,7
125125,0125,8
160160,0161,0
180180,0181,1
200200,0201,2
225225,0226,4
250250,0251,5
280280,0281,7
315315,0316,9
355355,0357,2
400400,0402,4
450450,0454,1
500500,0504,6
560560,0565,0
630630,0635,7

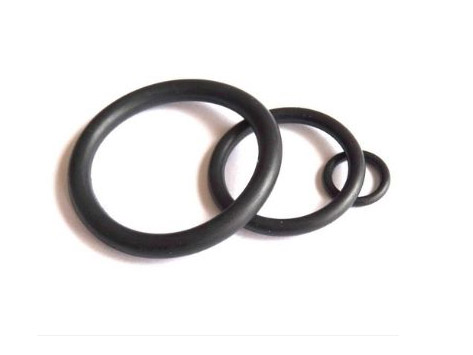

O'RING

SPECIFICATION

SIZE:

  • 20MM
  • 25MM
  • 32MM
  • 50MM
  • 63MM
  • 90MM

POLY REDUCING BUSH

SPECIFICATION

SIZE:

  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 3/4"
  • 50MM X 1"
  • 63MM X 3/4"
  • 53MM X 1"
  • 90MM X 3/4"
  • 90MM X 1"

POLY REDUCING BUSH

SPECIFICATION

SIZE:

  • 3/4" X 1/2"
  • 1" X 1/2"
  • 1" X 3/4"

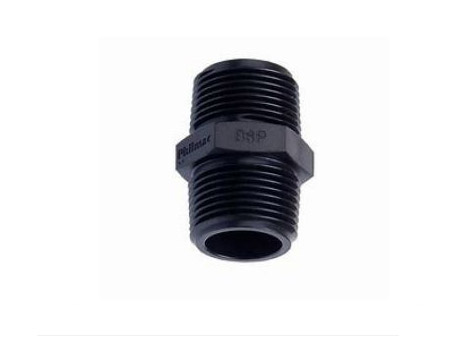

POLY NIPPLE

SPECIFICATION

SIZE:

  • 1/2" X 1/2"
  • 3/4" X 1/2"
  • 3/4" X 3/4"
  • 1" X 3/4"
  • 1" X 1"

END CAP

SPECIFICATION

SIZE:

  • 20MM
  • 25MM
  • 32MM
  • 50MM
  • 63MM

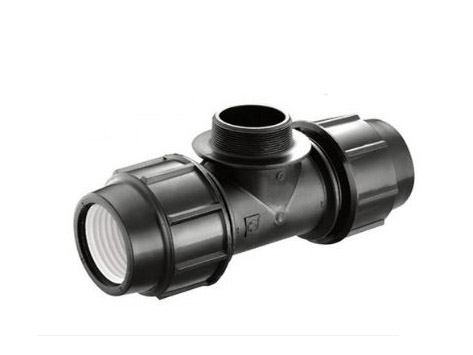

MALE TEE

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"

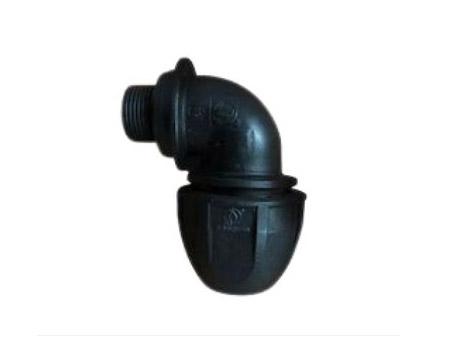

MALE ELBOW

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"

MALE THREADED ADAPTOR (F.T.A)

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"
  • 90MM X 3"

FEMALE TEE

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"

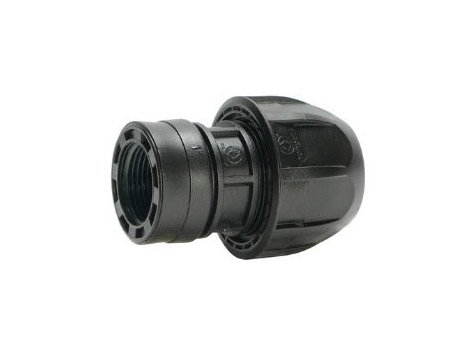

FEMALE THREADED ADAPTOR (F.T.A)

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"

REDUCING TEE

SPECIFICATION

SIZE:

  • 25MM X 20MM
  • 32MM X 20MM
  • 32MM X 25MM
  • 50MM X 25MM
  • 50MM X 32MM
  • 63MM X 25MM
  • 63MM X 32MM
  • 63MM X 50MM
  • 90MM X 63MM

FEMALE ELBOW

SPECIFICATION

SIZE:

  • 20MM X 1/2"
  • 20MM X 3/4"
  • 25MM X 1/2"
  • 25MM X 3/4"
  • 25MM X 1"
  • 32MM X 3/4"
  • 32MM X 1"
  • 50MM X 1 1/2"
  • 63MM X 2"

REDUCING ELBOW

SPECIFICATION

SIZE:

  • 25MM X 20MM
  • 32MM X 20MM
  • 32MM X 25MM
  • 50MM X 25MM
  • 50MM X 32MM
  • 63MM X 32MM
  • 63MM X 50MM

REDUCING SOCKET

SPECIFICATION

SIZE:

  • 25MM X 20MM
  • 32MM X 20MM
  • 32MM X 25MM
  • 50MM X 25MM
  • 50MM X 32MM
  • 63MM X 32MM
  • 63MM X 50MM
  • 90MM X 63MM

EQUAL TEE

SPECIFICATION

SIZE:

  • 20MM X 20MM
  • 25MM X 25MM
  • 32MM X 32MM
  • 50MM X 50MM
  • 63MM X 63MM
  • 90MM X 90MM

EQUAL ELBOW

SPECIFICATION

SIZE:

  • 20MM X 20MM
  • 25MM X 25MM
  • 32MM X 32MM
  • 50MM X 50MM
  • 63MM X 63MM
  • 90MM X 90MM

EQUAL SOCKET

SPECIFICATION

SIZE:

  • 20MM X 20MM
  • 25MM X 25MM
  • 32MM X 32MM
  • 50MM X 50MM
  • 63MM X 63MM
  • 90MM X 90MM

MILD STEEL HOLLOW SECTION

  • SPECIFICATION

JIS SUS 303, SUS 304, SUS304L, SUS316, SUS 316L
SHIM (SUS 304, SUS316), PLATE (SUS 310S), CHEQUERED,SQUARE, FLAT, ROUND, SQUARE HOLLOW (SUS 316L),REC.HOLLOW (SUS 316L), HEXAGON, ANGLE, C-CHANNEL

BALL VALVES

  • SIZE

1/2’’ TO 4’’

  • THREADED TYPE

BSPT,BSP,NPT,DIN2999 SOCKET WELDING

  • WORKING PRESSURE

1000PSI.

  • 1PC/2PC/3PC OR WAFER TYPE, PTFE SEAT,REDUCED BORE FOR 1PC BALLVALVE. FULL BORE FOR 2PC/3PC BALL VALVE,TWO WAY/THREE WAY.WITH OR WITHOUT MOUNTING PAD ISO5211, LEVER WITH LOCKINGDEVICE (OPTION)
  • MATERIAL

WCB.CF8.CF8M ETC

HOT DIP GALVANIZED PIPE

  • STANDARD

BS1387:1985/MS 863:1983, JIS G3452

  • TYPE

HOT-DIPPED GALVANIZED, ELECTRO GALVANIZED, HDG WITH PVC INNERLINED, HDG WITH SOCKET (THREADED END)

  • SIZE

1/2’’ TO 64’’ (OTHER LARGER SIZE IS AVAILABLE UPON REQUEST)

CARBON STEEL SEAMLESS PIPE

  • SPECIFICATION

ASTM A312/ASME SA312

  • MATERIAL GRADE

TP 304/304L , TP 316/316L

  • WALL THICKNESS

SCH10S , SCH40S , SCH40, SCH80S, SCH80, SCH160, SCHXXS

  • SIZE

¼’’-16’’

STAINLESS STEEL SEAMLESS PIPE

  • STANDARD

ASTM(ASME)SA/312/M

  • COMMODITY

SEAMLESS AND WELDED AUSTENITIC STAINLESS STEEL PIPES

  • MATERIAL

TP304,TP304L,TP316/316L,DUAL GRADE, TP317L, TP347

  • SIZE

½’’ TO 10’’

  • SCHEDULE

5/5S,10/10S,20/20S,40/40S,80/80S,120/120S,160/160S ACCORDING TO ANSI B36.19/36.10

BOLT & NUT

  • PRODUCTS SERIES

ASTM A193B7,B7M,B16,B8,B8M,
ASTM A94 2H,2HM,7.7M,8.8M
ASTM A320 L7,L7M
UNI 5587,5588
UNI 5931
UNI 5737

  • SURFACE TREATMENT

PHOSPHATE,PTFE,CAD PLATED,ZINC PLATED, HOT DIP ZINC PLATED

FORGED HIGH PRESSURE FITTINGS

  • STANDARD

ANSI B16.11.MSS SP97

  • SIZE

1/8’’ TO 4’’;PRESSURE:3000LB-6000LB

  • FORGED SCREWED AND SOCKET-WELD FITTINGS IN SHAPE OFELBOW,TEE,UNION,CROSS, COUPLING, HALF COUPLING, CAP, BUSH,PLUG, SWAGE NIPPLE, WELDING BOSS, HEXAGON NIPPLE, WELDOLETS,SOCKOLETS, THREADOLETS,NIPOLETS ETC.

  • MATERIAL

CARBON STEEL (OR GALVANIZED). STAINLESS, ALLOY STEEL ETC.

.

CARBON STEEL FLANGE

  • STANDARD

ANSI B16.5.API605,MSS SP44,API6A,DIN,AS,UNI,JIS

  • SIZE

1/2’’TO 60’’ OR LARGER;CLASS150LB TO 2500LB

  • SLIP-ON, WELDING NECK, BLIND, LAP-JOINT, SPECTACLE, SOCKET-WELDING, THREADED. RING JOINT.ORIFACE.TONGUE & GROOVE ETC
  • MATERIAL

FORGED CARBON STEEL, STAINLESS STEEL, ALLOY STEEL ETC

CARBON STEEL WELDED PIPES

  • STANDARD

ANSI B16.9

  • SIZE

1/2’’ TO 60’’ OR LARGER

  • BUTT-WELDING SEAMLESS & WELDED FITTINGS IN SHAPE OF LONGRADIUS / SHORT RADIUS ELBOWS(45 DEG ELBOW, 90 DEG ELBOW),STRAIGHT & REDUCING TEE. CROSSES. LAP JOINT STUB END, CAPS,CONCENTRIC & ECCENTRIC REDUCERS ETC.
  • MATERIAL

CARBOON STEEL, STAINLESS STEEL,ALLOY STEEL ETC.

METAL PLANK

  • STANDARD

BS1387:1985/MS 863:1983, JIS G3452

  • PRODUCT

SIZE 250MM X 40MM X 1.2MM X 2MTR
SIZE 250MM X 40MM X 1.2MM X 3MTR
SIZE 250MM X 40MM X 1.2MM X 4MTR

  • MATERIAL

HOT-DIPPED GALVANIZED

STAINLESS STEEL BUTT-WELD FITTING

  • STANDARD

ANSI B16.9

  • SIZE

1/2’’ TO 60’’ OR LARGER

  • BUTT-WELDING SEAMLESS & WELDED FITTINGS IN SHAPE OF LONGRADIUS/SHORT RADIUS ELBOWS(45 DEG ELBOW,90 DEG ELBOW),STRAIGHT &REDUCING TEE.CROSSES.LAP JOINT STUB END,CAPS,CONCENTRIC & ECCENTRIC REDUCERS ETC.
  • MATERIAL

CARBOON STEEL,STAINLESS STEEL,ALLOY STEEL ETC.

CARBON STEEL BUTT-WELD FITTINGS

  • STANDARD

ANSI B16.11.MSS SP97

  • SIZE

1/8’’ TO 4’’;PRESSURE:3000LB-6000LB

  • FORGED SCREWED AND SOCKET-WELD FITTINGS IN SHAPE OFELBOW,TEE,UNION,CROSS, COUPLING, HALF COUPLING, CAP, BUSH,PLUG, SWAGE NIPPLE, WELDING BOSS, HEXAGON NIPPLE, WELDOLETS,SOCKOLETS,THREADOLETS,NIPOLETS ETC.
  • MATERIAL

CARBON STEEL (OR GALVANIZED). STAINLESS, ALLOY STEEL ETC.

PRESSED DOUBLE COUPLER | FIXED CLAMP |FIXED COUPLER

  • STANDARD

JIS, BS, KR ETC

  • MATERIAL GRADE

SPHC ETC

  • SURFACE TREATMENT

ELECTRIC - GALVANIZED / HOT DIPPED GALVANIZED OR PAINTED

STAINLESS STEEL FLANGE

  • STANDARD

ANSI B16.5.API605,MSS SP44,API6A,DIN,AS,UNI,JIS

  • SIZE

1/2’’TO 60’’ OR LARGER;CLASS150LB TO 2500LB

SLIP-ON,WELDING NECK, BLIND, LAP-JOINT, SPECTACLE, SOCKET-WELDING,THREADED. RING JOINT. ORIFACE. TONGUE & GROOVE ETC.

  • MATERIAL

FORGED CARBON STEEL ,STAINLESS STEEL, ALLOY STEEL ETC

STAINLESS STEEL WELDED PIPES

STAINLESS STEEL WELDED PIPES
  • SPESIFIKASI

JIS SUS 303, SUS 304, SUS304L, SUS316, SUS 316L

  • AVAILABLE

SHIM (SUS 304, SUS316), PLATE (SUS 310S), CHEQUERED, SQUARE, FLAT, ROUND, SQUARE HOLLOW (SUS 316L), REC. HOLLOW (SUS 316L), HEXAGON, ANGLE, C-CHANNEL T
